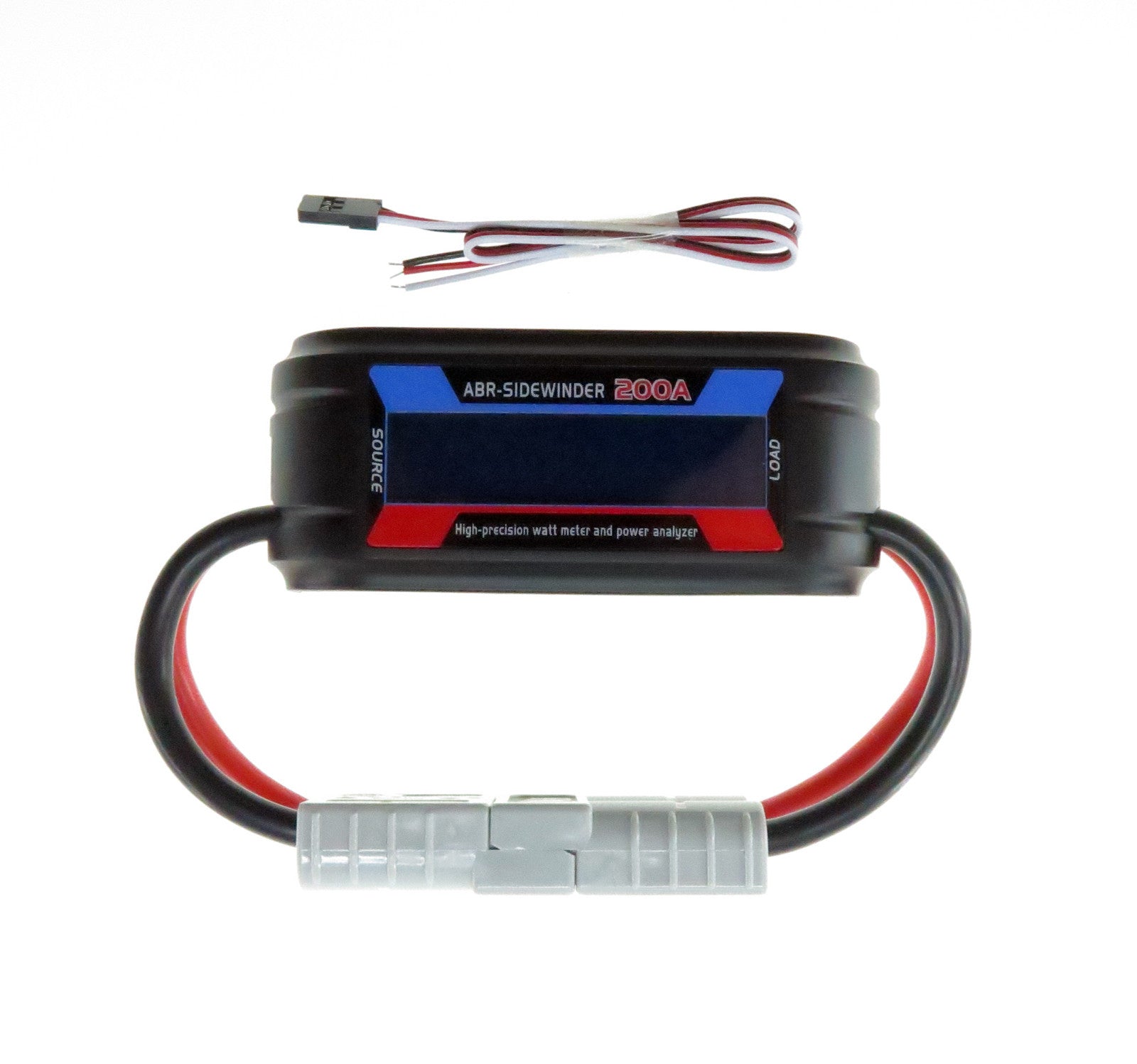

5V TO 60V
200A POWER METER
50A Anderson Plugs fitted.
Easy DIY, simply fit inline ANYWHERE
Measure amps, watts and volts.
Position solar panels for max efficiency, check fridge draw, total Ah etc.
Even mount it on your dash as a dual battery monitor.
Aux cable included, not supplied by other manufacturers.
Heavy duty tinned silicone coated cables 8 AWG (8.37mm2)
Measures 8 parameters
Volts -
Watts/Hour
Features
Helps testing peak currents and low voltages damaging battery.
Verify sufficient operating voltage under load.
Set cut off voltages, check battery capacity & health.
Confirm proper battery charger operation.
6 x 2, back lit LCD display
Operates from 4.8 to 60V or down to 0V with optional auxiliary battery (cable included)
0 to 200A, resolution 0.01A
0 to 60V, resolution 0.01V
0 to 6554W, resolution 0.1W
0-
Specifications
Length (mm) 110
Width (mm) 45
Height (mm) 28
Weight (g) 135
Instructions: https://www.mediafire.com/?fa1lbw4cwyob2h3
