12V 140A VSR ISOLATOR 140A DUAL BATTERY ABR SIDEWINDER DBi SYSTEM

DUAL BATTERY CONTROLLER

Full 12 month warranty.

HEAVY DUTY 140 AMP 12 VOLT

BUILT IN SPIKE & SURGE PROTECTION

STUD LOCKS + EPOXY COATED PCB

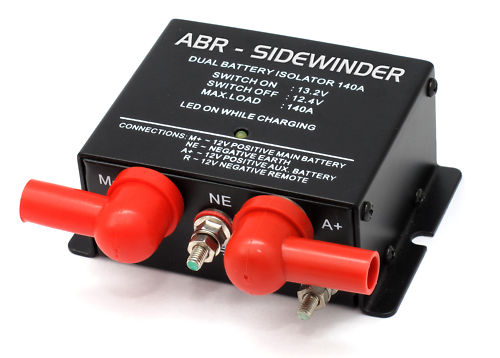

Dual Battery Isolator (DBi-140R)


The ‘R’ series is fitted with a remote stud, this stud is used for 2 main functions.

1) To duplicate the function of the LED
     (Optional LED required)

2) To override the isolator for emergency starting from the aux battery
     (Optional Push Button required)

The circuit board has been improved to allow for larger relays and is now rated at 140A
continuous and 400A surge.

Epoxy coated for better waterproofing and corrosion resistance.

Sealed relays for spark prevention and use in harsh environments.

FULLY AUTOMATIC CONTROL ISOLATES STARTING BATTERY WHEN ENGINE IS NOT RUNNING.

 CHARGES STARTING BATTERY FIRST WITH FULLY AUTOMATIC SWITCHING. (13.2V KICK IN - 12.4V KICK OUT) NEVER HAVE A FLAT STARTING BATTERY AGAIN !

WEATHER RESISTANT

CHARGING LED INDICATOR

EASY D.I.Y. INSTALLATION.

ONLY REQUIRES 2 WIRES + EARTH.

GREAT FOR 4WD AND CAMPING.

Size 75x65x36mm.

Very popular unit for off road use and camping.
