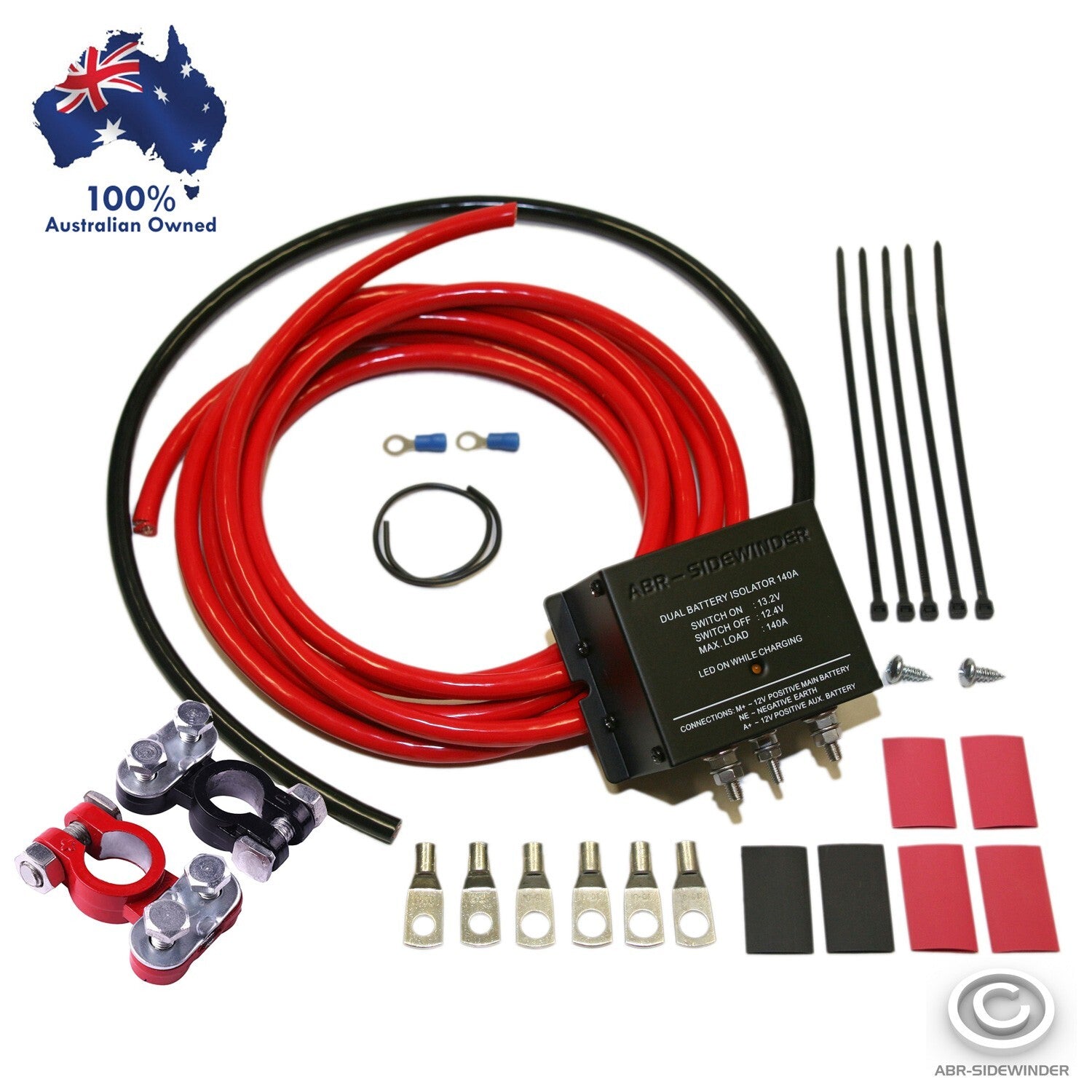

Ute version 6M DUAL BATTERY SYSTEM 140A FULL KIT ISOLATOR+MONITOR VOLT METER

12V Electronic Dual Battery System

Designed for under bonnet applications

Latest 140A Heavy duty fully automatic isolator

Includes optional 'LINK' function for start assist.

Simple 3 wire connection.

Supplied with 3m of 6 B&S silicone cable to suit all 4wd engine bays.

6m ute tray system

BUILT IN SPIKE & SURGE PROTECTION

FULLY AUTOMATIC CONTROL ISOLATES STARTING BATTERY WHEN ENGINE IS NOT RUNNING.

 CHARGES STARTING BATTERY FIRST WITH FULLY AUTOMATIC SWITCHING. (13.2V KICK IN - 12.4V KICK OUT) NEVER HAVE A FLAT STARTING BATTERY AGAIN !

WEATHER RESISTANT

CHARGING LED INDICATOR

EASY D.I.Y. INSTALLATION.

Note: Batteries and trays are not included.

DBi120 IS NOW UPGRADED TO DBi140R AS STANDARD WITH ALL MODELS AND COMPLETE KITS

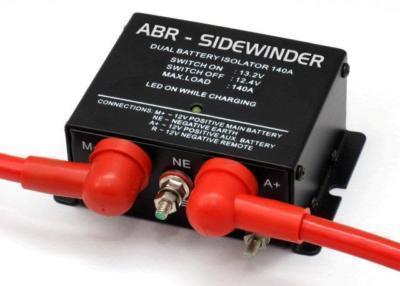

Dual Battery Isolator (DBi-140R)

Our already popular DBi-120R isolator has been upgraded and improved once again .

The ‘R’ series is fitted with a remote stud, this stud is used for 2 main functions.

1) To duplicate the function of the LED
     (Optional LED required or ABR Monitor)

2) To override the isolator for emergency starting from the aux battery
     (Optional Push Button required or ABR Monitor)

The circuit board has been improved to allow for larger relays and is now rated at 140A
continuous and  400A surge.

Epoxy coated for better waterproofing and corrosion resistance.

Sealed relays for spark prevention and use in harsh environments.

RUBBER BOOTS SUPPLIED AS STANDARD WITH 140A ISOLATOR

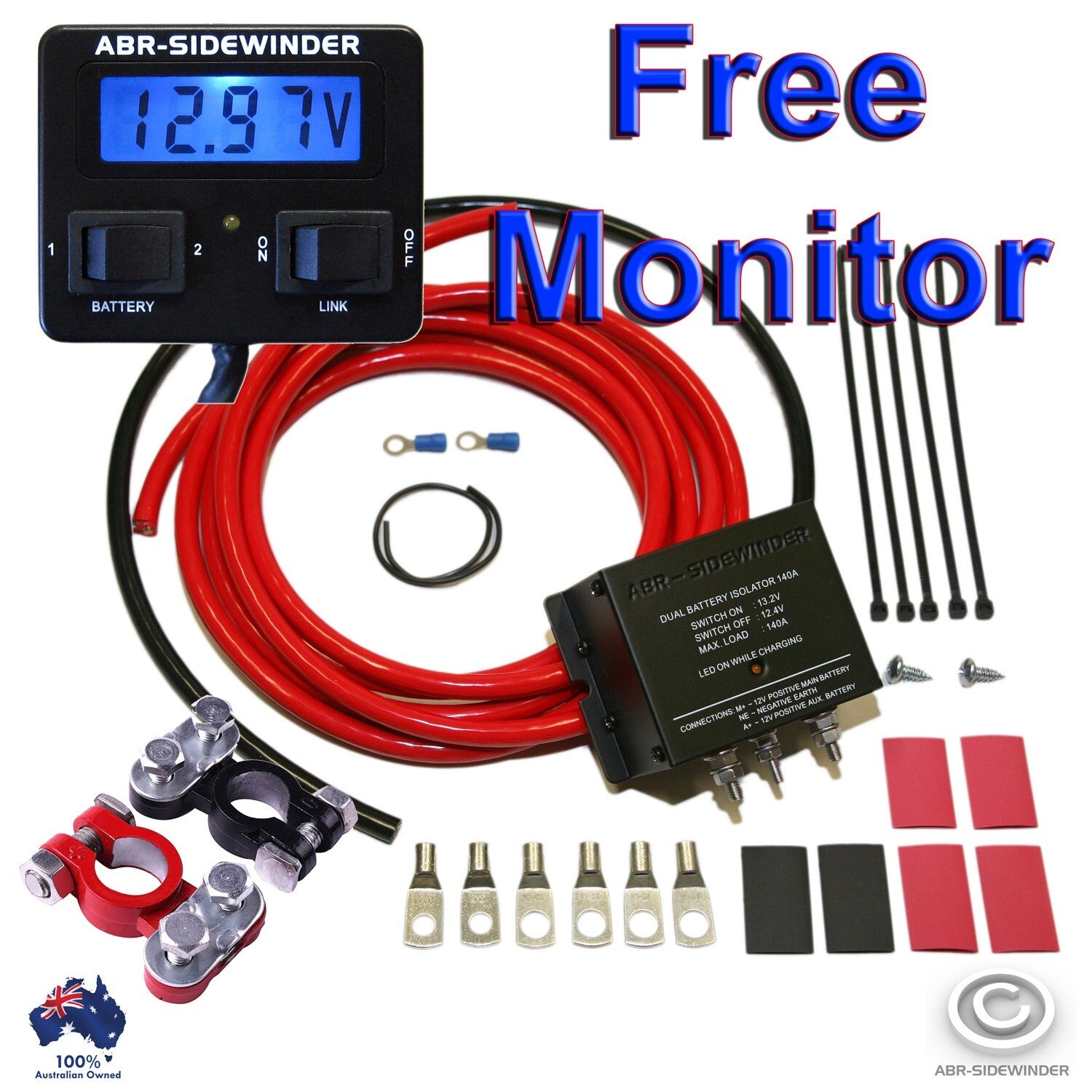

NOTE: FREE MONITOR IS INCLUDED
