12V Electronic Dual Battery System
Designed for under bonnet applications
Latest 140A Heavy duty fully automatic isolator
Includes optional 'LINK' function for start assist.
Simple 3 wire connection.

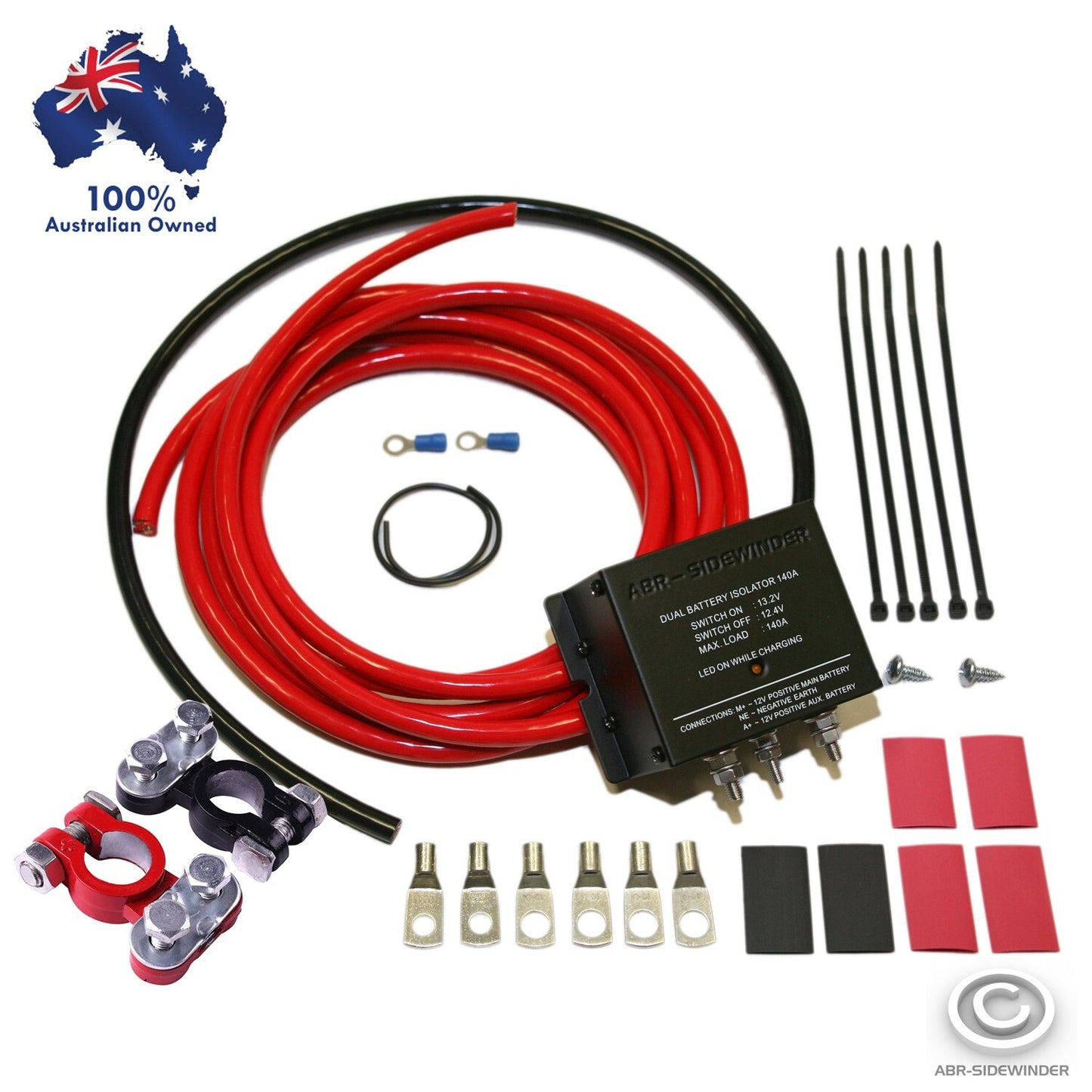

Supplied with 3m of 6 B&S cable to suit all 4wd engine bays.
(6m ute tray system available on request - just ask - $15.00 more)
BUILT IN SPIKE & SURGE PROTECTION
FULLY AUTOMATIC CONTROL ISOLATES STARTING BATTERY WHEN ENGINE IS NOT RUNNING.
CHARGES STARTING BATTERY FIRST WITH FULLY AUTOMATIC SWITCHING. (13.2V KICK IN - 12.4V KICK OUT) NEVER HAVE A FLAT STARTING BATTERY AGAIN !
WEATHER RESISTANT
CHARGING LED INDICATOR
EASY D.I.Y. INSTALLATION.
Note: Batteries and trays are not included.
DBi120 IS NOW UPGRADED TO DBi140R AS STANDARD WITH ALL MODELS AND COMPLETE KITS
Dual Battery Isolator (DBi-
Our already popular DBi-
The ‘R’ series is fitted with a remote stud, this stud is used for 2 main functions.
1) To duplicate the function of the LED
(Optional LED required or ABR Monitor)
2) To override the isolator for emergency starting from the aux battery
(Optional Push Button required or ABR Monitor)
The circuit board has been improved to allow for larger relays and is now rated at 140A
continuous and 400A surge.
Epoxy coated for better waterproofing and corrosion resistance.
Sealed relays for spark prevention and use in harsh environments.

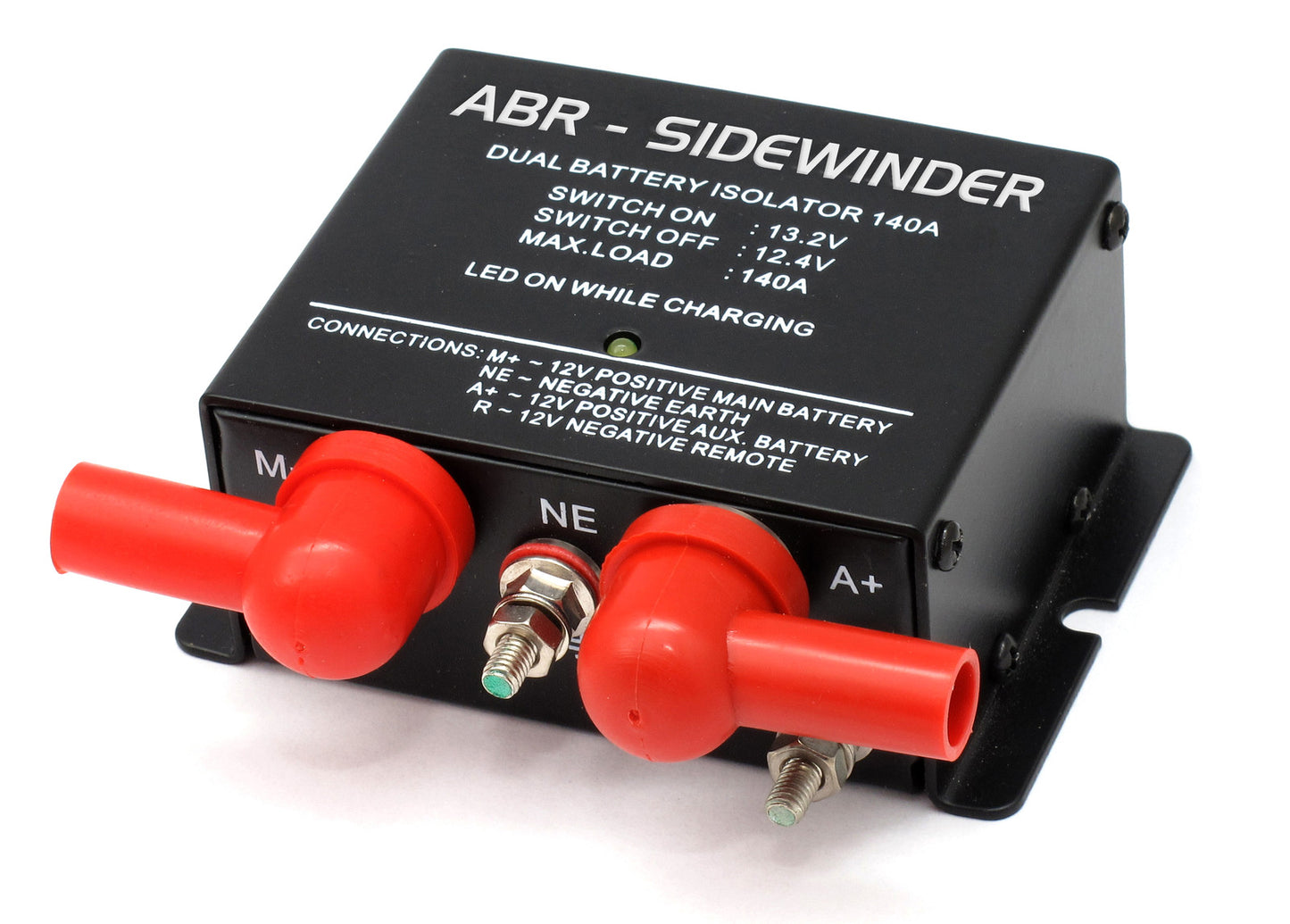

RUBBER BOOTS SUPPIED AS STANDARD WITH 140A ISOLATOR
NOTE: PLEASE ALSO LOOK AT OUR MONITOR DESIGNED FOR THIS ISOLATOR
IT IS AVAILABLE IN OUR EBAY SHOP
OPTIONAL MONITOR (NOT INCLUDED)
