DUAL BATTERY SOLAR POWER METER AMP AND DATA LOGGER 200A POWER METER 130A 150A

5V TO 60V

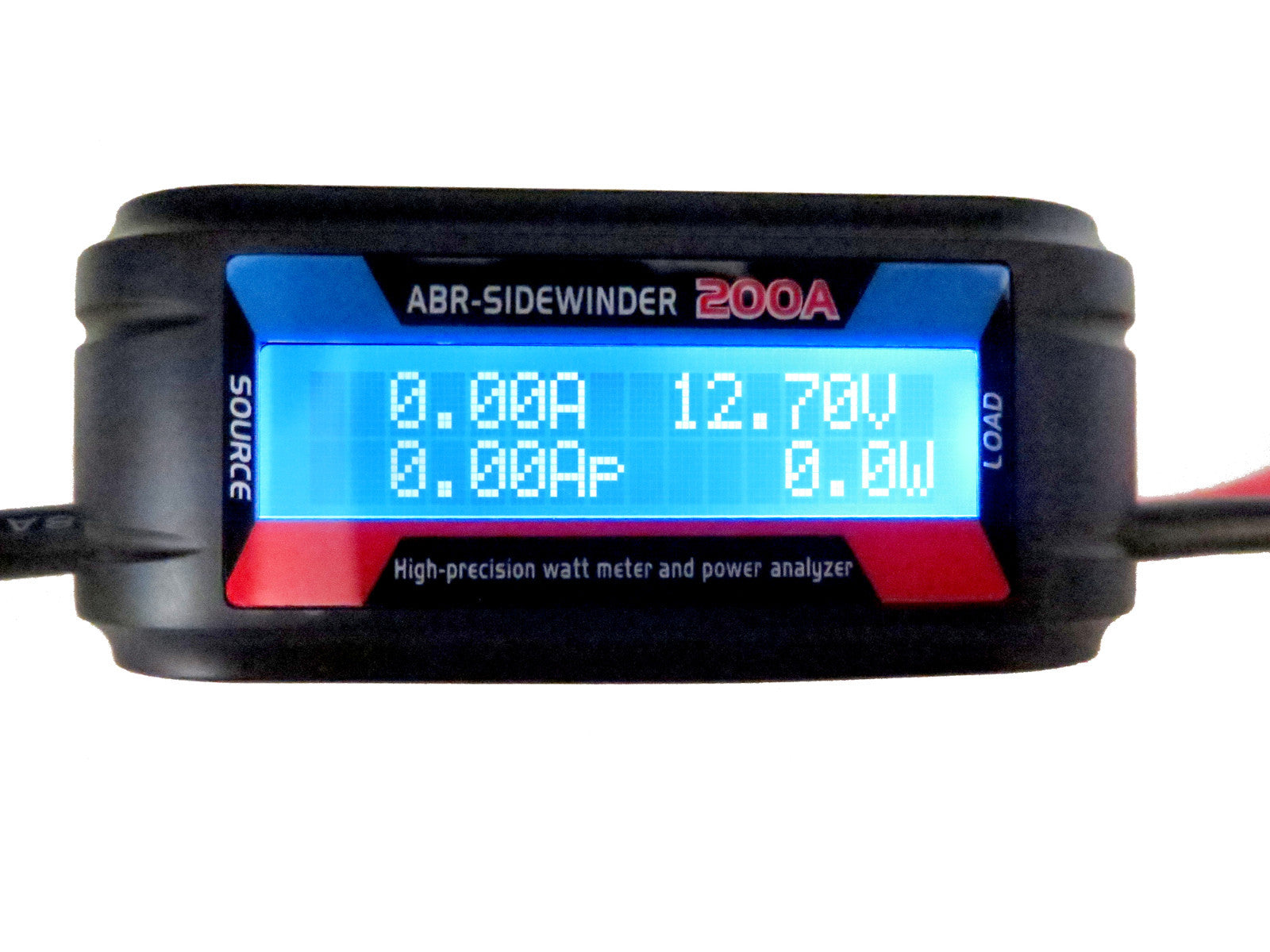

200A POWER METER

Easy DIY, simply fit inline ANYWHERE

Measure amps, watts and volts.

Position solar panels for max efficiency, check fridge draw, total Ah etc.

Even mount it on your dash as a dual battery monitor.

Aux cable included, not supplied by other manufacturers.

Heavy duty tinned silicone coated cables 8 AWG (8.37mm2)

Measures 8 parameters
 Volts - Real time
 Volts - Minimum
 Amps - Real time
 Amps - Peak
 Watts - Real time
 Watts - Peak
 Amps/Hour
 Watts/Hour

Features
 Helps testing peak currents and low voltages damaging battery.
    Verify sufficient operating voltage under load.
 Set cut off voltages, check battery capacity & health.
 Confirm proper battery charger operation.
 6 x 2, back lit LCD display
 Operates from 4.8 to 60V or down to 0V with optional auxiliary battery (cable included)
 0 to 200A, resolution 0.01A
 0 to 60V, resolution 0.01V
 0 to 6554W, resolution 0.1W
 0-6500 Ah, resolution 0.001 Ah
 0-650KWh, resolution 0.1 Wh


Specifications
Length (mm)  110
Width (mm)  45
Height (mm)  28
Weight (g)  135

Instructions: https://www.mediafire.com/?fa1lbw4cwyob2h3
